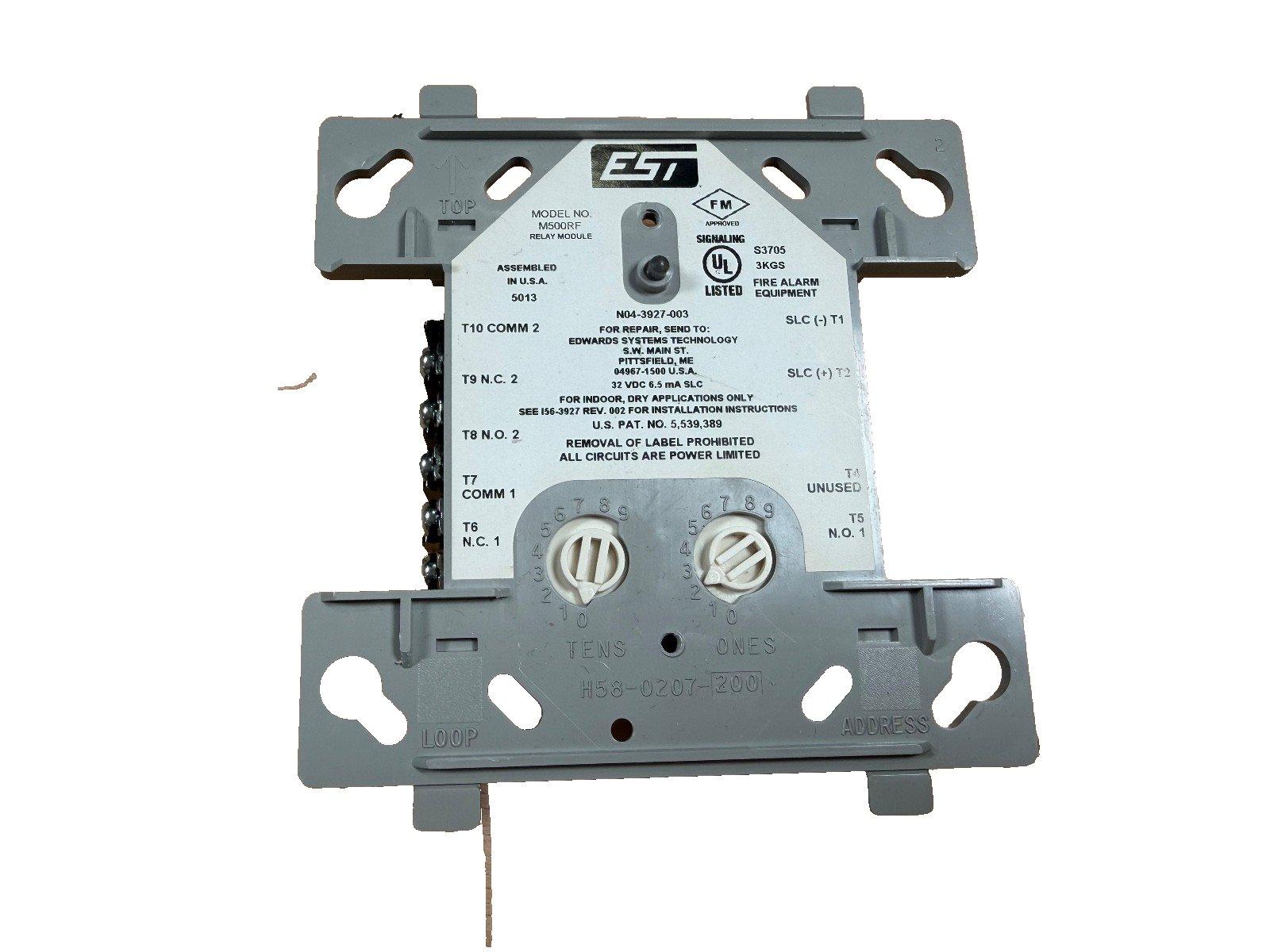

EST Edwards M500RF Fire Alarm Relay Module

EST Edwards M500RF Fire Alarm Relay Module - Life-Safety Interface Component The EST Edwards M500RF is a sophisticated addressable control module designed to provide a supervised relay output for fire alarm systems. This unit seamlessly integrates into existing signaling loops to facilitate the activation of auxiliary equipment or notification devices during emergency events. - Operating voltage: 15V to 32V DC - Standby current: 400µA maximum - Alarm current: 400µA with LED enabled - Relay contact rating: 2A at 30V DC - Operating temperature range: 32°F to 120°F

Compared to previous generations of Edwards control hardware, the M500RF offers improved signal stability and a more compact footprint for easier installation within standard electrical enclosures. While older relay modules often required significantly higher current draws during standby operation, this model enhances system efficiency by maintaining a minimal power profile without sacrificing response time or reliability under critical stress conditions.

Advanced Engineering and System Reliability

Precision manufacturing ensures that the M500RF meets the rigorous demands of modern commercial life-safety deployments. By utilizing advanced addressable technology, this relay module reduces overall wiring complexity, allowing for faster commissioning and simplified maintenance schedules in large-scale fire detection networks.
