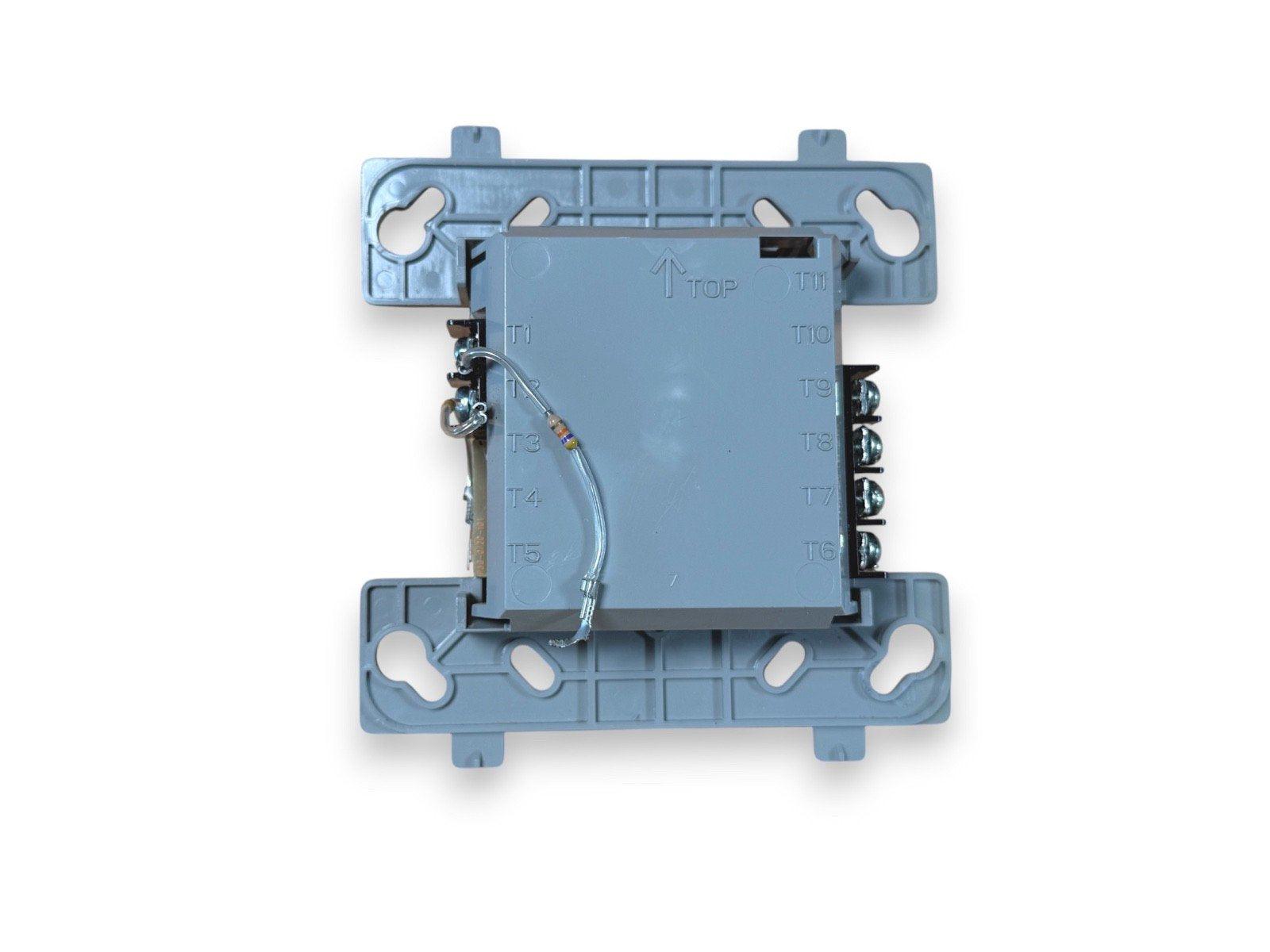

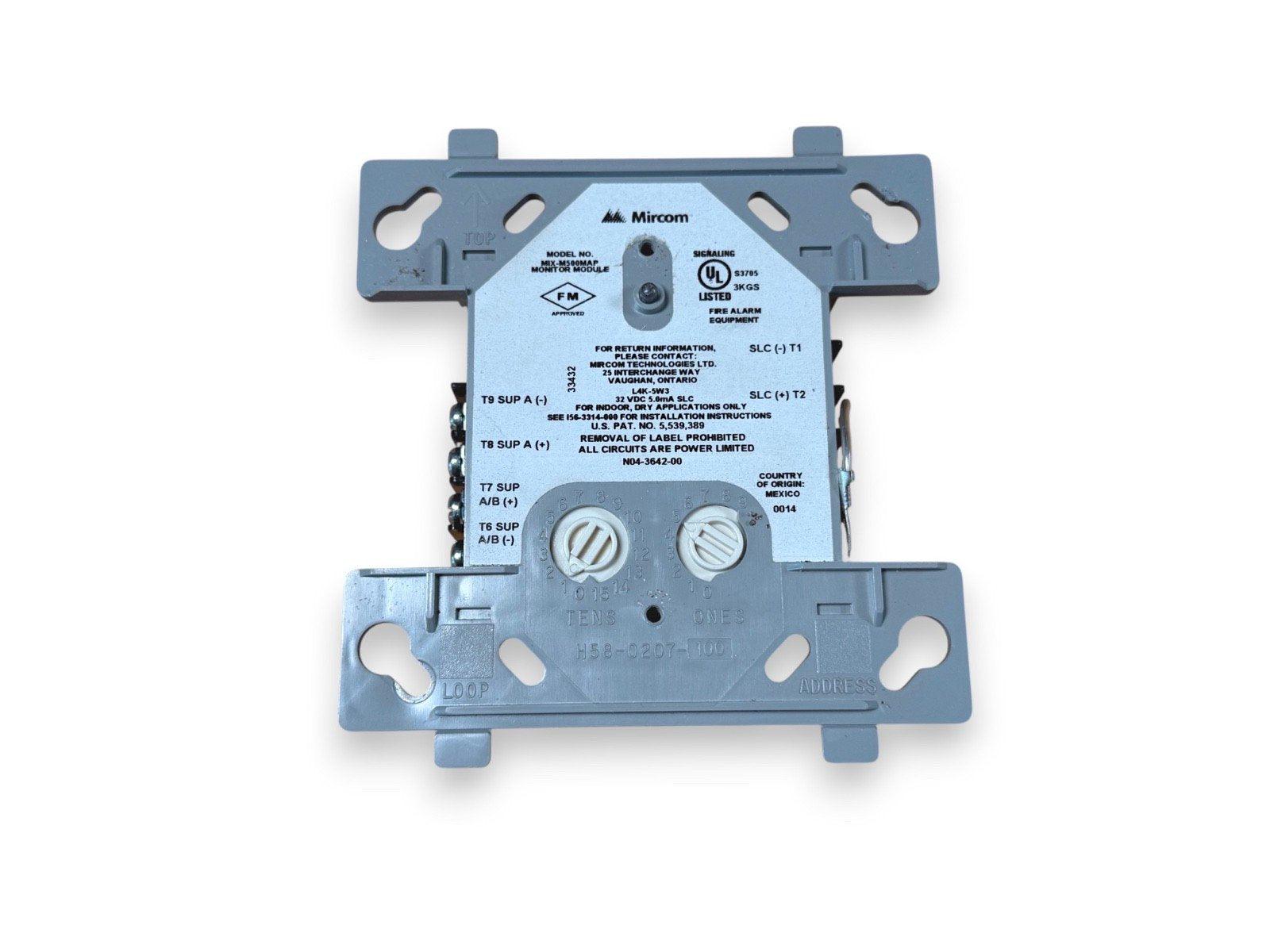

Mircom MIX-M500MAP Fire Alarm Monitor Module

Mircom MIX-M500MAP Fire Alarm Monitor Module - This high-performance addressable device enables seamless integration of normally open contact alarm initiating devices into your fire safety network. It provides reliable monitoring for waterflow switches, pull stations, and other critical signaling hardware with precision efficiency.

• Operating Voltage: 15 to 32 VDC
• Standby Current: 750 µA max at 24 VDC
• Alarm Current: 5.1 mA (LED latching)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Maximum Humidity: 10% to 93% non-condensing

Compared to legacy signaling modules, the MIX-M500MAP offers superior communication stability and a significantly reduced footprint for easier installation in standard electrical backboxes. This modern iteration improves upon older monitor interfaces by utilizing advanced digital protocols that minimize false alarms while ensuring instantaneous response times during emergency events.

Advanced Circuit Supervision and Reliability

The Mircom MIX-M500MAP is engineered for high-demand life safety environments, featuring a compact design that maintains direct addressability for rapid system diagnostics. By utilizing a sophisticated digital communication loop, the module ensures that contact closures are accurately transmitted to the fire alarm control panel, providing facility managers with real-time status updates and simplified maintenance verification. Its robust construction protects internal circuitry against environmental stressors, ensuring consistent performance that meets modern fire protection standards for commercial and industrial buildings.
