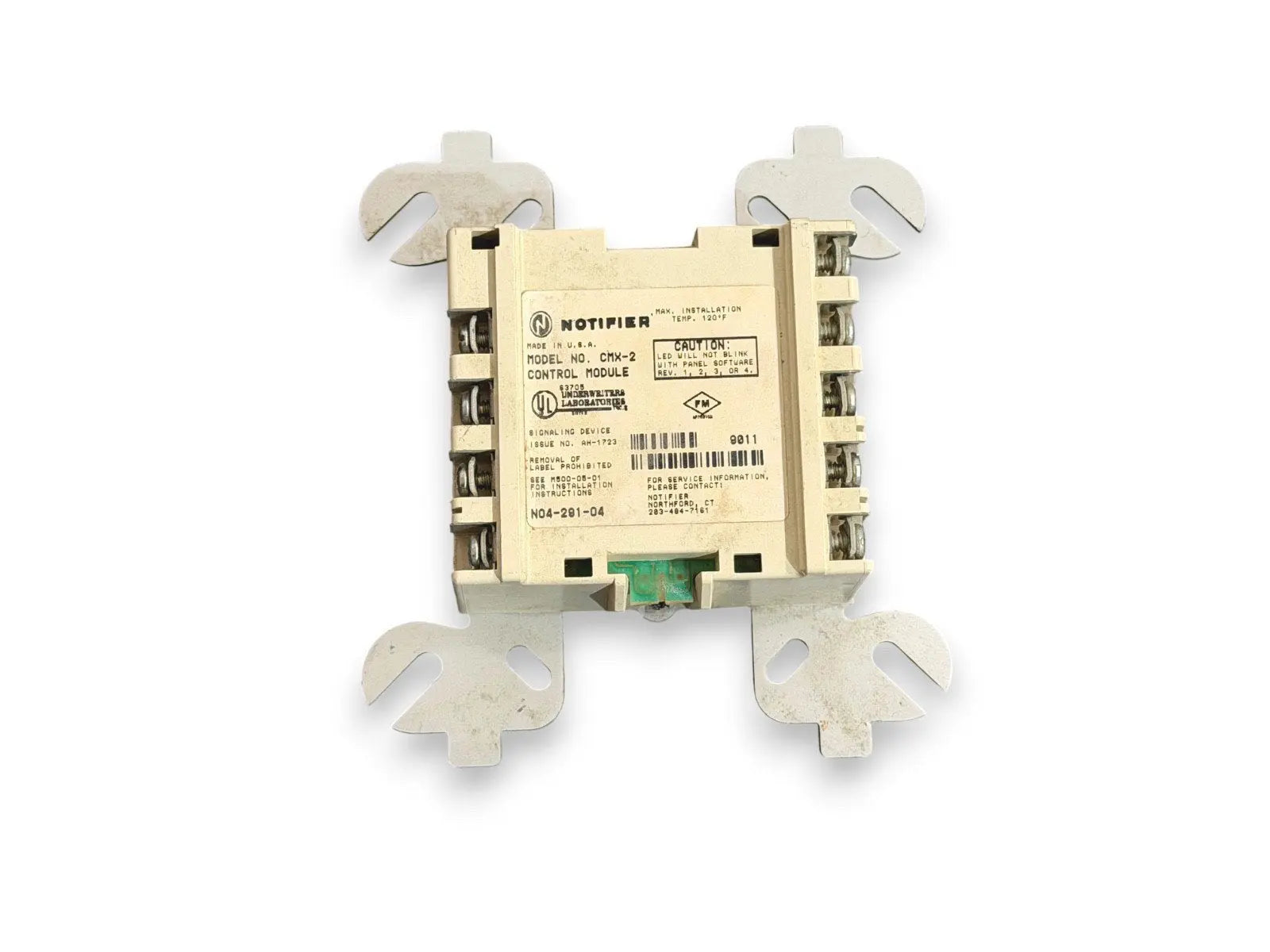

NOTIFIER CMX-2 Fire Alarm Addressable Control Module

NOTIFIER CMX-2 Fire Alarm Addressable Control Module - This high-performance addressable control module manages critical life-safety functions by providing supervised output for notification appliances. It offers reliable, programmable circuit supervision to ensure your fire alarm system responds instantly during emergencies.

- Supervised Output Circuit: 24V DC / 2A nominal rating - Communication Protocol: FlashScan or CLIP loop compatibility - Operating Voltage Range: 15 to 32V DC - Current Consumption: 350µA maximum at 24V DC - Installation Environment: Designed for standard indoor electrical enclosures

Engineered for seamless integration, the CMX-2 improves upon legacy relay modules by offering enhanced diagnostic feedback and superior loop stability. Unlike older non-intelligent models, this unit provides precise status reporting to the fire alarm control panel, significantly reducing false alarm triggers and streamlining maintenance routines for facility managers.

Advanced Signaling and System Integration

The CMX-2 utilizes sophisticated circuitry to monitor the integrity of the connected notification appliance circuit. By constantly polling the status of the output device, it detects open or shorted wiring conditions immediately, ensuring that your suppression or notification infrastructure remains mission-ready. Its compact design allows for efficient mounting in standard junction boxes, making it an ideal choice for both new construction and retrofitting existing fire safety networks.

High-Efficiency Performance Benefits

• Programmable Logic Control: Configure specific response patterns tailored to your building's unique fire safety requirements via the control panel.
• FlashScan Protocol Efficiency: Benefit from lightning-fast communication speeds that minimize the latency between sensor activation and alarm output.
• Integrated Status LEDs: Identify module operation or fault conditions at a glance through the built-in diagnostic illumination.
• Simplified Wiring Configuration: Reduce installation complexity with clearly marked terminals designed for quick and secure field connections.
• Robust Environmental Reliability: Maintain consistent system performance across a wide range of operating temperatures and humidity levels.
